Fascia Mount Frameless Glass Channel

£479.10 inc VAT

Fascia Mount Frameless Glass Channel for Glass Balustrade

3 Metre Aluminium Base Channel - Stainless Steel Effect

Note: Glass NOT included. (See our frameless glass products)

How it works - VIDEO

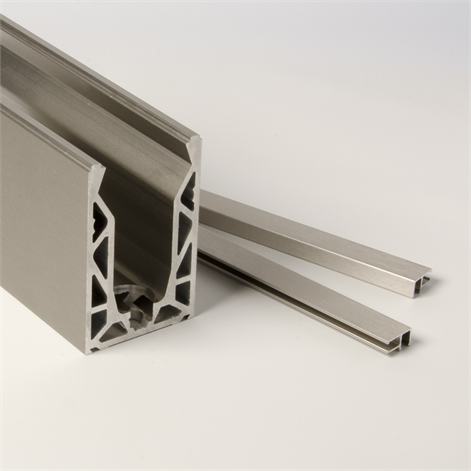

This anodised aluminium glass channel is the ideal base for any glass barrier or balustrade. The channel, made from aluminium is lightweight and durable and is also satin anodised to give a stainless-steel finish.

This material allows the channel to provide the strength and support needed as well as complementing our stainless-steel handrails to give a contemporary, continuous and seamless finish.

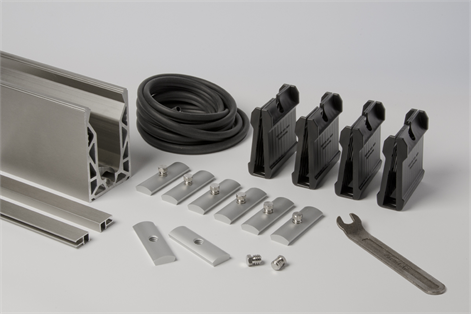

The glass channel comes complete with aluminium bolts, clamp bars and top seal strips making it both easy to install as well as straightforward to achieve a sturdy and professional finish.

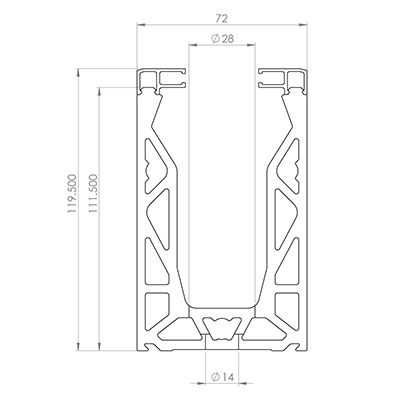

The overall length of the channel is 3000mm long. The finished height (including seal strips) is 119.5mm, and it is 72mm wide. It accommodates glass panes from 12mm up to 21.5mm thick.

Installation instructions:

  • Start by bolting the aluminium channel securely to the substructure
  • Next, place the glass slip clamps on to the bottom of your glass panes

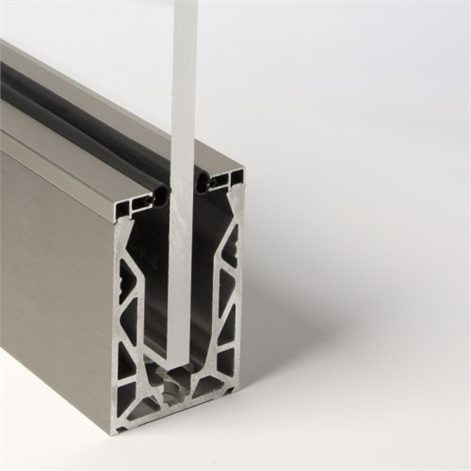

  • Slot the glass pane into place in the aluminium channel

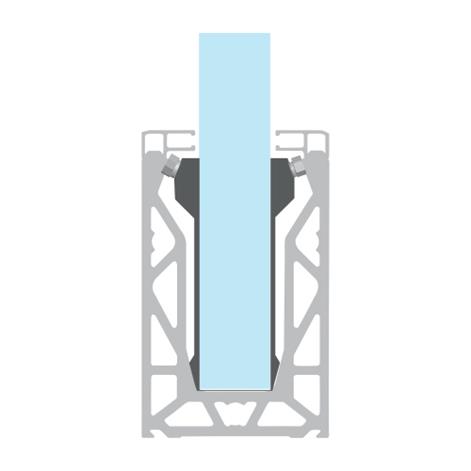

  • Then press in the clamp bars to hold the glass securely
  • The clamp bars can then be adjusted to align the glass panes as well as ensure they are vertical
  • The top seal strip can then be clipped into place.

Glass Channel

For areas where more than 3 metres of glass barrier is needed, simply place as many glass channels as are needed next to one another ensuring that the clamp bars are adjusted as necessary to align adjacent glass panels.

The glass channel comes in two variants. One for a base or floor fix, or for a side fix. There are also variants to allow for different glass dimensions. Glass panes with a thickness of 12mm, 13.5mm, 15mm, 17.5mm 19mm and 21.5mm can all be catered for.

The glass channel is supplied with bolt holes pre-drilled to allow for easy installation.
